USE:

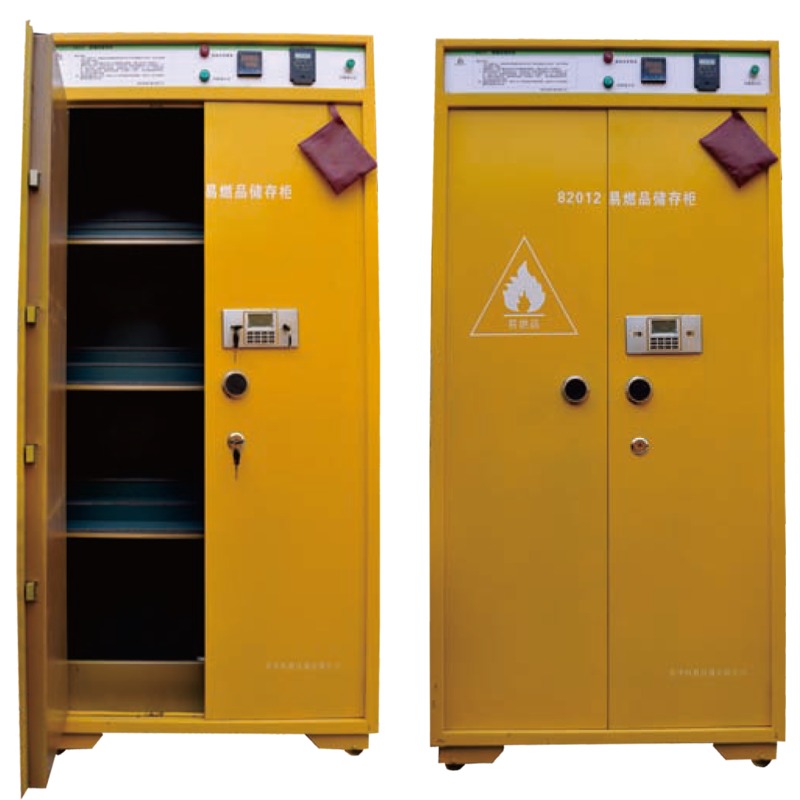

For storage the toxicant and inflamable substance of university and middle school.
2. Specification:
a.Size:900x500x2060mm
b.Gross weight:155kgs
c.Material of cabinet:1.2mm galvanized steel plain sheet,inner with thickness of 20mm rock wool.With fireproof rubber security.
d.Inner tank:Solid physiochemical board.
e.Base of the cabinet with air intake:size 90x50x145mm,and stainsteel adjustable air valve.
There has a dia 10mm liquid leakage hole in the bottom,and covered with stainsteel net.Under the leakage hole there has 160mm thick sand baffle.
f.There has 3 layers movable solid physiochemical board,every layer with a air guide.
g.There has a dia 150mm air outlet in the top of the cabinet,with a exhaust fan.Blowing rate no less than 326m3/h,speed 2550 turn/min,temperature:-10℃-70℃.
h.With electronic lock and mechanical lock.
3.Caution
Turn on the air intake before turn on the exhaust fan.
4.Working conditions:
a.Votage:192V-242V;47.5Hz-52.5Hz
b.Temperature:10℃--45℃
c.Humidity:≤90%RH
Sichuan Machinery Tools I/E Co., Ltd.
